- True slant bed design

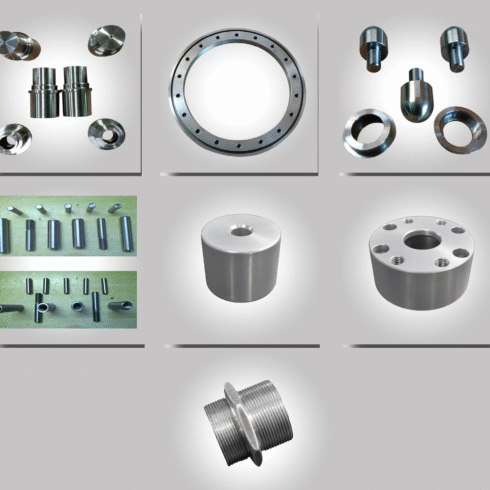

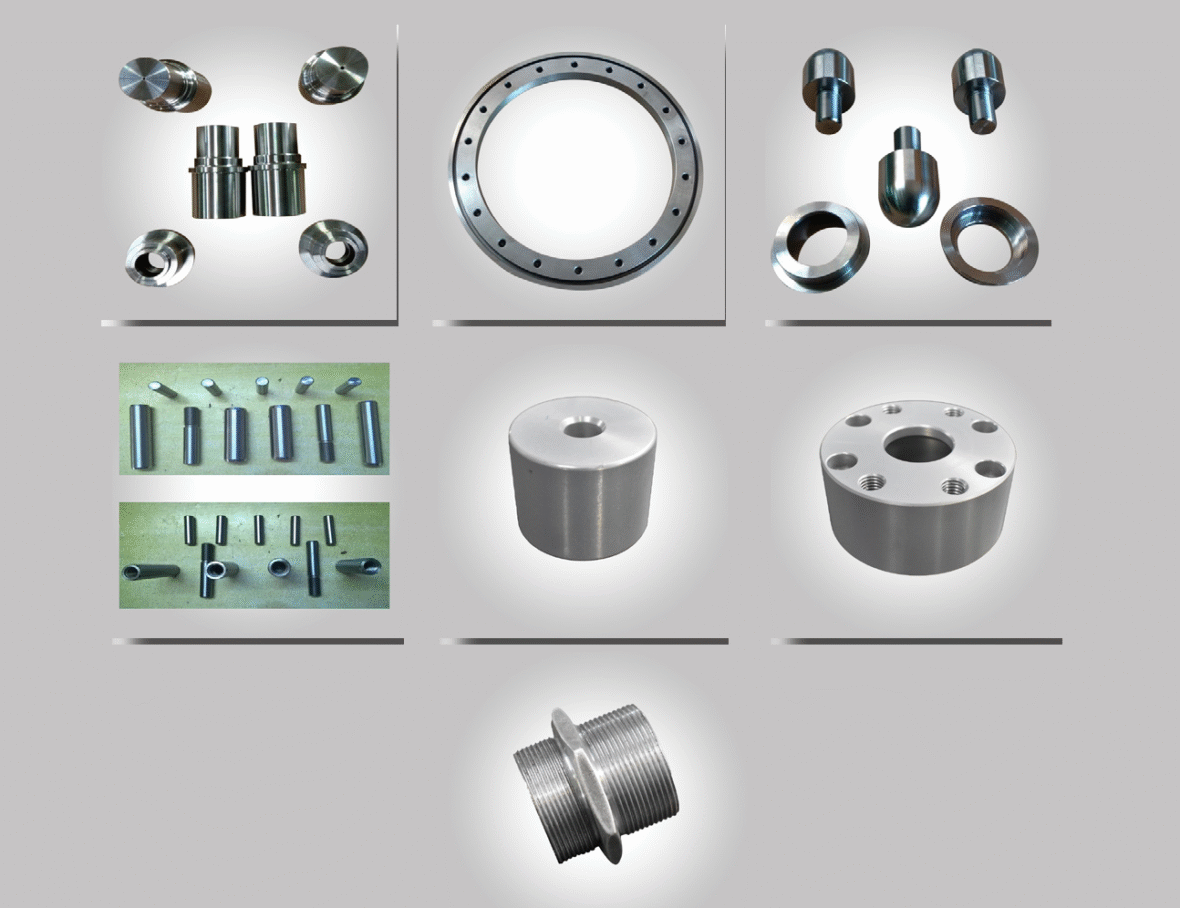

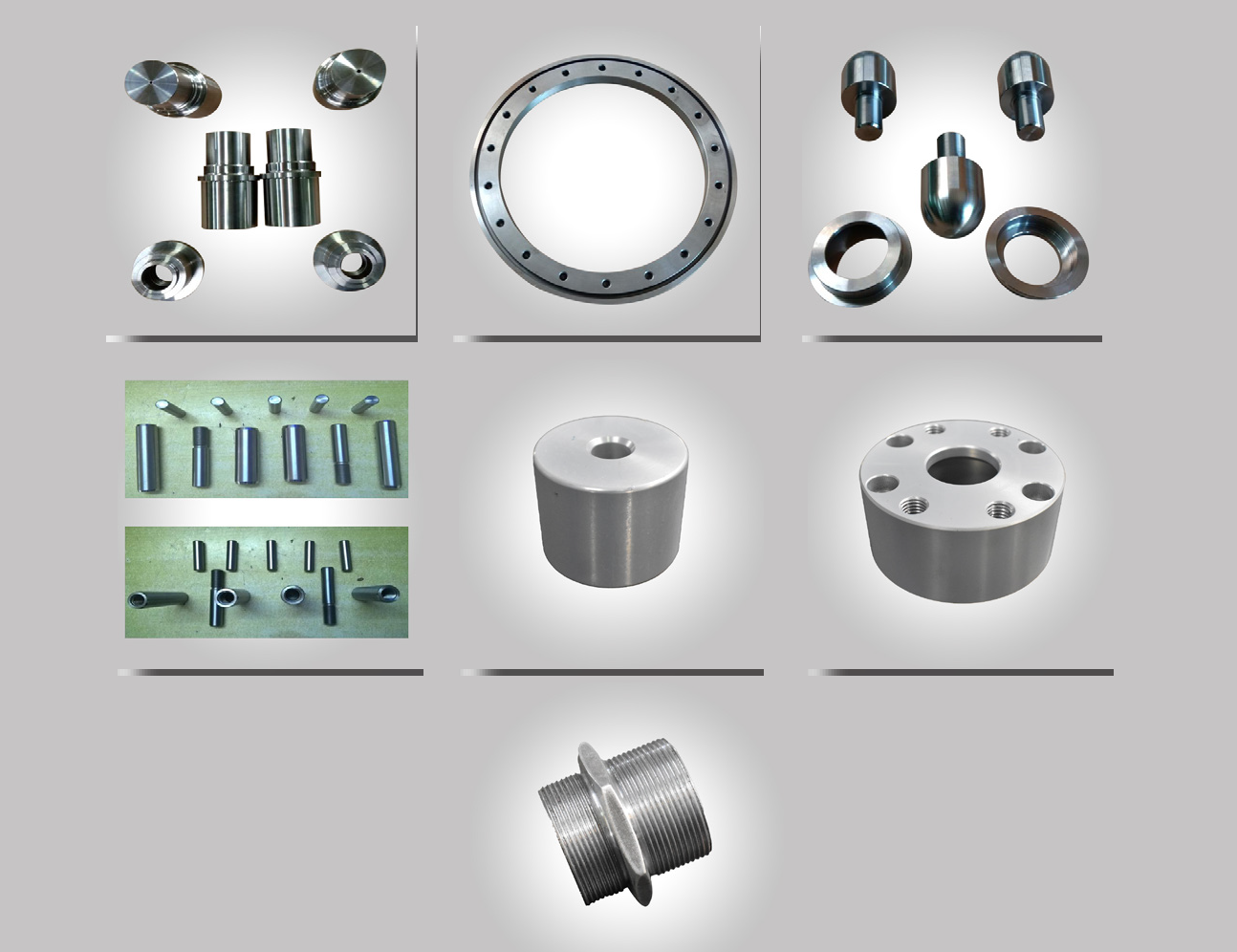

- Ideal for two-wheeler parts batch or mass production.
- Eight station bi-directional, random indexing EM Turret
- Chuck or collet hydraulic operated …
- Variants available SC-7N and SC-9N

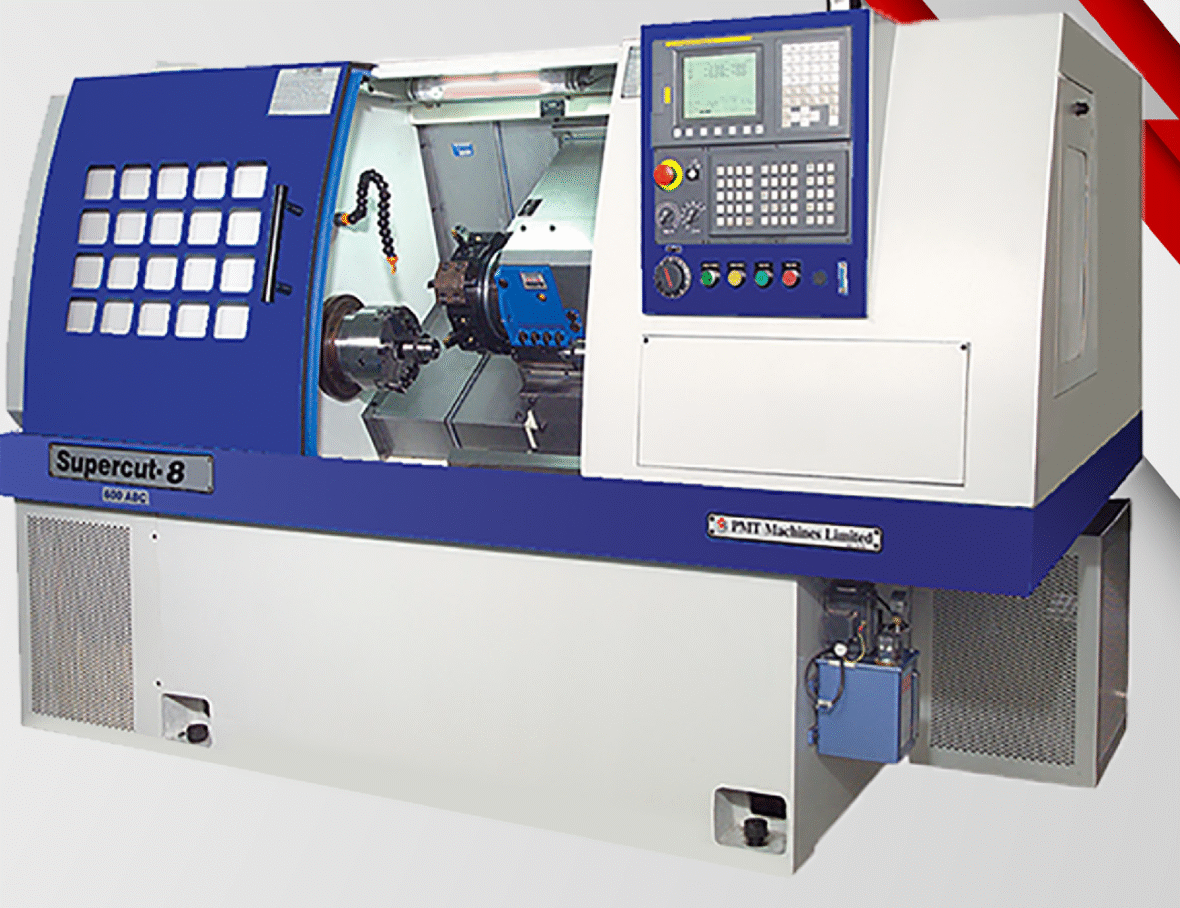

CNC Turning Supercut 8
CNC Turning Supercut 8
Technical Specification
Weight of the machine : 2800 kg
Max turning dia : 200 mm
Chuck size max : 200 mm
Max turning length between centre : 400 mm
Spindle nose : A2-6 / 42mm
Spindle power : 7.5/11kW,4000 rpm
Tailstock centre : MT4 / 100 mm
Tool size turning : 25×25,Dia 40
Axes stroke : 170 / 400 mm
Rapid traverse rate : 15000 mm / min
Technical Details
CNC Turning Machine – 2 Nos
SUPERCUT-8 (PMT machine)
| # | Machine | Values |
|---|---|---|
| 1 | Chuck Diameter | Ø 250 |
| 2 | Length X Breath | 400 X 650 |
| 3 | Number of Tools | 8 |
CNC Turning Machine
PMT SC8N (PMT MACHINE)
| # | Machine | Values |
|---|---|---|
| 1 | Chuck Diameter | Ø 200 |
| 2 | Length X Breath | 450 X 700 |
| 3 | Number of Tools | 8 |
